CBB65 370V 440V AC Motor Run Capacitors
What is CBB65 Capacitor?
According to the provisions of China’s national standard GB2470-81, the capacitor named product model generally consists of the following four parts:
Part I: The letter represents the name, the meaning of C is a capacitor.
Part II: with letters material.
Part III: numerical classification.
Part IV: The digital serial number.
For example: “CBB65” Capacitor
C – meaning Capacitor
B – meaning the Dielectric is a non-polar organic film
B – meaning the Dielectric material is polypropylene
65 – meaning P2 Anti-explosion metal capacitor can motor run capacitor.
Feature:
CBB65 Capacitor is type for Metallized Polypropylene Film Capacitor, Metal Case P2 Motor run capacitor Round Case or Oval case.CBB65 Capacitor is equipped inside with reliable explosion-proof equipment and is highly safe. With its good self-healing characteristic and long life-span, it is widely used for air-conditioners, refrigerators, generators, compressor and HVAC system.
1) Dielectric: polypropylene film

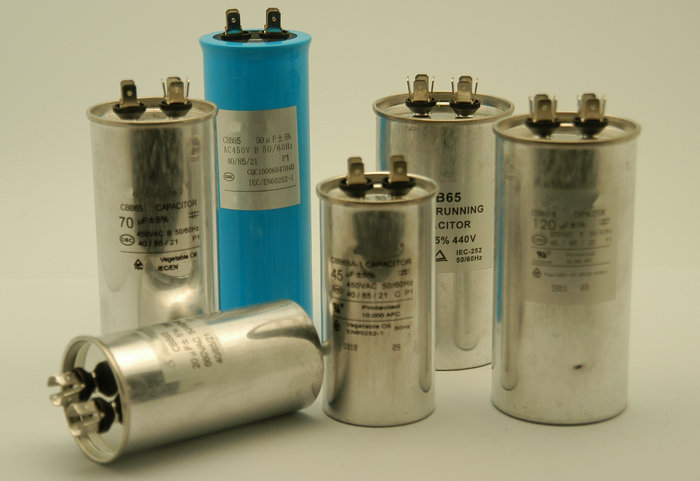

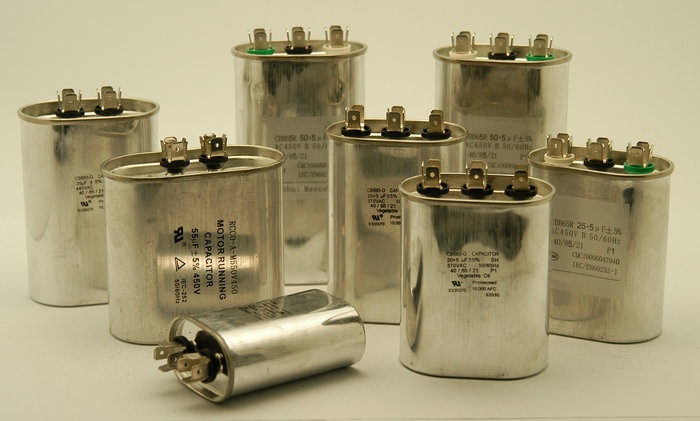

2) Aluminum Round & Oval can
3) Oil filled capacitor
4) Self-heating properties
5) Low dissipation factor
6) Explosion proof device
7) Highest safety level P2 safety class to IEC 60252-1
8) High insulation resistance
9) Terminals
2+2 pins 6.35mm x0.8 250#
2+3 pins 6.35mm x0.8 250#
2+4 pins 6.35mm x0.8 250#
4+4 pins 6.35mm x0.8 250#
2+3+4 pins 6.35mm x0.8 250#
4+4+4 pins 6.35mm x0.8 250#
10) Mounting parts (optional) Threaded stud at bottom of can (M8, max.torque=5 Nm)
Specification:
Item | Technical specification |
Operating temperature | -25¡æ – +85¡æ |
Capacitance Range | 2μF – 100μF |
Capacitance tolerance | ±5% |
Rated Voltage | 250Vac – 540VAC |
Dissipation Factor | tgδ≤0.002 (50Hz) |
Withstand Voltage Between Leading-out ends | AC≥1.75Un 10S (Imax≤1.3InA) |
Withstand Voltage Between Leading-out ends and Shell | 2200VAC, 10S no breakdown |
Insulation Resistance | 3000MO.µF |
Weather Category | 25/70/21,40/85/21 |
¢ñ: CBB65A Capacitor aluminum can oil filled capacitor

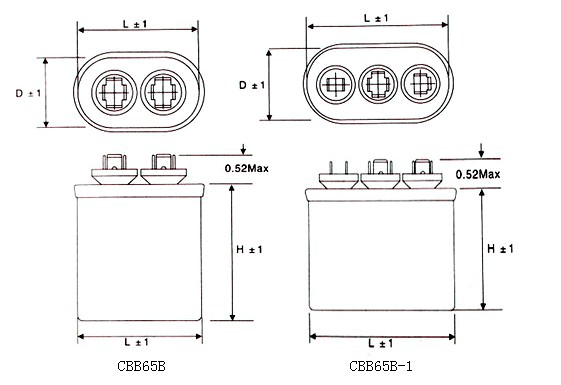

¢ò: CBB65B Capacitor aluminum can oil filled capacitor
if you could not find your item of above, you could contact me by email at share@capacitora.com, Special specification are available on request.
