CD60B 110V-330V AC metal case Motor Start Capacitor
CD60 Capacitor applies to A.C.single phase motor, with frequency 50/60Hz,rated voltage 110-330VAC. lt can help motors gain high torque with low starting current and make motor start nomally. lt can also start to refrigerators and compressors of air condition ,etc.
CD60B Motor start capacitor aluminum Can blue color
Specification:
Working Temperature Range | -40–+65¡æ |
Rated Voltage Range | 110V,150V,165V,220V,250V,275V,300V,330VAC |
Rated Capacitance Range | 50-1000uF |
Dissipation Factor | Tan ≤ 0.01 (50 Hz) |
Rated Tolerance of capacitance | 0-+20% |
Without Voltage Between Terminal | Apply 1.25 times working voltage, for 2 Seconds,without break down or explosion |
Withstand Voltage Between Terminal case | 2000Vac ,for 10 seconds,without break down or explosion |

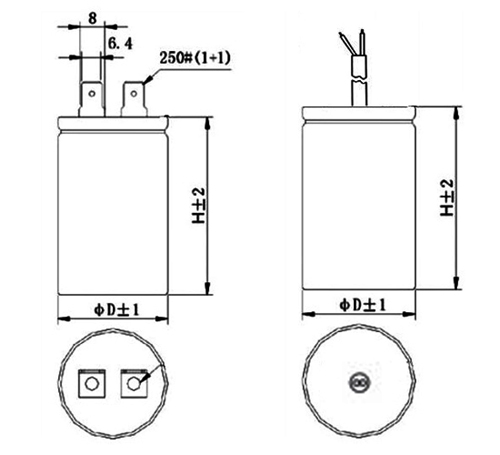

Dimensions:
Capaci-
tance |
Rated Voltage 115V- 165V
|
Rated Voltage 220V- 275V
|
Rated Voltage 300V- 330V
|
|||||||||
D(mm)
|
D(inch)
|
H(mm)
|
H(inch)
|
D(mm)
|
D(inch)
|
H(mm)
|
H(inch)
|
D(mm)
|
D(inch)
|
H(mm)
|
H(inch)
|
|
50-100μF
|
34
|
1.34″
|
80
|
3.15″
|
34
|
1.34″
|
80
|
3.15″
|
34
|
1.34″
|
80
|
3.15″
|
100-120μF
|
34
|
1.34″
|
80
|
3.15″
|
34
|
1.34″
|
80
|
3.15″
|
34
|
1.34″
|
80
|
3.15″
|
120-150μF
|
34
|
1.34″
|
80
|
3.15″
|
34
|
1.34″
|
80
|
3.15″
|
34
|
1.34″
|
80
|
3.15″
|
150-200μF
|
34
|
1.34″
|
80
|
3.15″
|
34
|
1.34″
|
80
|
3.15″
|
34
|
1.34″
|
80
|
3.15″
|
200-250μF
|
34
|
1.34″
|
80
|
3.15″
|
34
|
1.34″
|
80
|
3.15″
|
34
|
1.34″
|
80
|
3.15″
|
250-300μF
|
42
|
1.65″
|
70
|
2.76″
|
42
|
1.65″
|
70
|
2.76″
|
42
|
1.65″
|
70
|
2.76″
|
350-400μF
|
42
|
1.65″
|
70
|
2.76″
|
42
|
1.65″
|
70
|
2.76″
|
42
|
1.65″
|
70
|
2.76″
|
400-500μF
|
42
|
1.65″
|
70
|
2.76″
|
42
|
1.65″
|
70
|
2.76″
|
42
|
1.65″
|
70
|
2.76″
|
500-600μF
|
50
|
1.97″
|
100
|
3.94″
|
50
|
1.97″
|
100
|
3.94″
|
50
|
1.97″
|
100
|
3.94″
|
700-800μF
|
50
|
1.97″
|
100
|
3.94″
|
50
|
1.97″
|
100
|
3.94″
|
50
|
1.97″
|
100
|
3.94″
|
800-1000μF
|
50
|
1.97″
|
120
|
4.72″
|
50
|
1.97″
|
120
|
4.72″
|
50
|
1.97″
|
120
|
4.72″
|
if you could not find your item of above, you could contact me by email at share@capacitora.com, Special specification are available on request.
