CBB80 250VAC fluorescent lamps Capacitor
CBB80 capacitor uses thickened Metallized Polypropylene film as medium,with low loss,high insulation resistance,self-healing,stable performance,impact resistance,anti-striking current,onerload caoacity,it takes second-generation mechanical anti-riot design,higher reliadility,and external discharge resistor.Especially suitable for metal halide lamp fishing boats lighting circuit starting and running.
CBB80 Capacitors Used for AC electronic power system at 50HZ(60HZ). Especially for fluorescent lamps, efficient metal-halogenide lampsfor debase current in circuit and save electric energy. Power factor correction of transformers and magnetic ballasts in discharge lamps like fluorescent lamps, high pressure sodium vapor lamps,high pressure mercury vapor lamps,and metal halide lamps,etc.
Feature:
CBB80 Capacitors is characterized by its smallness, long life-span, good self-healing characteristic and safe anti-explosion net as its dielectric layer. It is special for grille lamp, and is ideally energy-saving.
1) dry and soakage
2) Small in dimension
3) light in weight
4) low dissipation factor
5) good self-healing character
6) especially safety reliability
7) Widely applied to fluorecent lamps and halogen lamps
Specification:
| Rated capacitance | 2µF ~ 60µF |
| Tolerance | ± 5% |
| Rated voltage VR | 250VAC -450VAC |
| Rated frequency FR | 50/60Hz |
| Test voltage terminal to terminal VTT | 2 x VR, 60s |
| Test voltage terminal to terminal VTC | 2 x KV, 60s |
| Dissipation factor tan δ | ≤ 5 x 10-4 (V=Vn T= +20¡æ) |
| Climate types | -40¡æ ~ +105¡æ |
| Reference standards | EN61048, EN61049, UL810 |
| Safety class according IEC 60252-1 | IP00 |
| Life expectancy to IEC 60252-1 | 3,000(C) ~ 10,000h(B) |

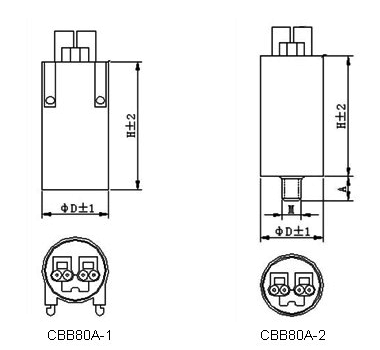

¢ñ: CBB80A Capacitor for fluorescent lamps aluminum or plastic can M8
¢ò: CBB80B Capacitor for fluorescent lamps aluminum or plastic can M8
Dimensions:
|
Capacitance
|
Rated Voltage
|
Capacitor Can
|
Dimensions
|
|||
|
D(mm)
|
D(inch)
|
H(mm)
|
H(inch)
|
|||
|
3μF
|
250Vac
|
Plastic or Aluminum
|
35
|
1.38″
|
60
|
2.36″
|
|
4μF
|
250Vac
|
Plastic or Aluminum
|
35
|
1.38″
|
60
|
2.36″
|
|
4.5μF
|
250Vac
|
Plastic or Aluminum
|
35
|
1.38″
|
60
|
2.36″
|
|
6μF
|
250Vac
|
Plastic or Aluminum
|
35
|
1.38″
|
60
|
2.36″
|
|
8μF
|
250Vac
|
Plastic or Aluminum
|
35
|
1.38″
|
60
|
2.36″
|
|
9μF
|
250Vac
|
Plastic or Aluminum
|
35
|
1.38″
|
70
|
2.76″
|
|
10μF
|
250Vac
|
Plastic or Aluminum
|
35
|
1.38″
|
70
|
2.76″
|
|
12μF
|
250Vac
|
Plastic or Aluminum
|
40
|
1.57″
|
70
|
2.76″
|
|
15μF
|
250Vac
|
Plastic or Aluminum
|
40
|
1.57″
|
70
|
2.76″
|
|
18μF
|
250Vac
|
Plastic or Aluminum
|
40
|
1.57″
|
90
|
3.54″
|
|
20μF
|
250Vac
|
Plastic or Aluminum
|
40
|
1.57″
|
90
|
3.54″
|
|
24μF
|
250Vac
|
Plastic or Aluminum
|
40
|
1.57″
|
90
|
3.54″
|
|
30μF
|
250Vac
|
Plastic or Aluminum
|
40
|
1.57″
|
90
|
3.54″
|
|
32μF
|
250Vac
|
Plastic or Aluminum
|
45
|
1.77″
|
92
|
3.62″
|
|
35μF
|
250Vac
|
Plastic or Aluminum
|
45
|
1.77″
|
92
|
3.62″
|
|
40μF
|
250Vac
|
Plastic or Aluminum
|
45
|
1.77″
|
92
|
3.62″
|
|
55μF
|
250Vac
|
Plastic or Aluminum
|
50
|
1.97″
|
90
|
3.54″
|
if you could not find your item of above, you could contact me by email at share@capacitora.com, Special specification are available on request.
