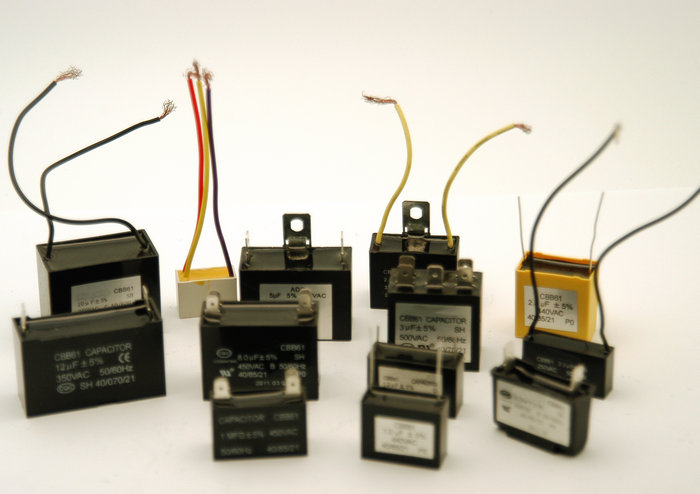

CBB61 250V 450V AC Motor Run Capacitors
CBB61 Capacitor takes heavy-edge metallized Al/Zn PP film or web-like safety film as dielectric. It is impregnated with flame-retardant epoxy resinand canned in cubic ABS plastic case with characteristics of small size, reliable performance and long endurance.
CBB61 Capacitor has features of small size, light weight, small tangent in waste angle, and good self-concrescence. Applied to the starting and better working of sing-phase motor in 50Hz(60Hz) frequency AC power system.
Feature:
All of its performance indexes reach the requirements of IEC252 criterion. With its good self-healing characteristic long life-span and high proportionality, it is widely used as the start-up and running capacitor that is special for electric appliances such as electric fanners, ventilatorsand exhaust fan.
Specification:
| Working Temperature Range | 40/85/21, 25/70/21 |
| Rated Voltage Range | 200-500Vac |
| Rated Capacitance Range | 1µF – 30µF |
| Dissipation Factor | Tan ≤0.002 (50Hz) |
| Rated Tolerance of capacitance | ±5%,±10% |
| Withstand voltage |
intensity Pole-pole Rated voltage ×2 /10S Pole-Shell×2+ 1000V Min 2000V.AC Insulation resistance T-T RC≥4000S |
| Reference standard | IEC 60252-1 |
Άρ: CBB61A Capacitor Plastic can Box type flexible wire
Άς: CBB61B Capacitor plastic box type single or double faston
if you could not find your item of above, you could contact me by email at share@capacitora.com, Special specification are available on request.
