CBB60 250V 450V AC Motor Run Capacitors



What is CBB60 Capacitor?

According to the provisions of China’s national standard GB2470-81, the capacitor named product model generally consists of the following four parts:

Part I: The letter represents the name, the meaning of C is a capacitor.
Part II: with letters material.
Part III: numerical classification.
Part IV: The digital serial number.

For example: “CBB60” Capacitor
C – meaning Capacitor
B – meaning the Dielectric is a non-polar organic film
B – meaning the Dielectric material is polypropylene
60 – meaning Plastic can motor run capacitor.Broadly applied to starting and running of AC single-phase motors at 50/60Hz frequency for AC motorelectric enginewater pumpgenerator and high efficiency compressors of refrigerators etc.



CBB60 Capacitor Feature:

CBB60 Capacitors takes heavy-edge metallized Al/Zn PP film or web-like fuse film as dielectric. Its components are sealed with flame-retardant epoxy resin. It has cylindric outline with high reliability and stability.CBB60 capacitor has features of small size, light weight, small tangent in waste angle, and good self-concrescence. Applicable to startand operation with 50/60Hz. A. C single motor, specially suit for micro pump, baric pump, micro motor and so on.

1) Very small dissipation factor,small inheterent temperature rise.
2) High insulation resistance.
3) Good capacitance stability.
4) Excellent self-healigh property.
5) Safety and hight reliability due to flame reatardant plastic or metal case enclosure,flame retardant opoxy resin endfill.
6) It is applicable for the starting and running of AC single-way motor with 50~60Hz frequency.
7) Special requirment can be made at the request of customers.



Specification:

Capacitance Range 1μF—100μF
Capacitance Tolerance ±5% , ±10%
Rated Alternate Voltage 250VAC, 350AC, 370AC, 400VAC, 440VAC, 450VAC,500VAC
Rated Frequency 50/60 Hz
Dissipation Factors ≤0.002(1KHz,20¡æ)
Operating Temp. -40¡æ ~ +85¡æ or -40¡æ ~ +70¡æ
Case Material PBT, PP, Aluminium, Flammability Class – UL 94 V -2, 750C (RTI)
Dielectric Polypropylene with self healing SH
Insulation Resistance ≥3000S
Weather Category 40/85/21, 25/70/21
Withstand voltage(Terminal to Terminal) 2 X Rated Voltage
Withstand voltage(Terminal to Case) Minimum 2000 V AC for 1 Min.
Ref. Standard IEC60252-1:2001,GB/T3667.1-2005,UL810
Quality System ISO 9001£º2008
Approvals CQC,CE,VDE,UL,RoHS
Application Electrical motor, pump, washing machine, Power saver



I: CBB60A Capacitor Plastic can Quickly connect 4 pins terminal M8 Stud

CBB60A Capacitor Plastic can Quickly connect 4 pins terminal M8 Stud

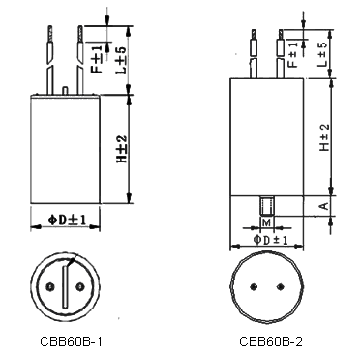

II: CBB60B Capacitor flexible /solid wire plastic can,M8 Stud

CBB60 Capacitor flexible solid wire plastic can,M8 Stud



III: CBB60C Capacitor Bipolar Cable Plastic can M8 stud

CBB60C Capacitor Bipolar Cable Plastic can M8 stud


questionif you could not find your item of above, you could contact me by email at share@capacitora.com, Special specification are available on request.
